Chemical 20T/H Rotary Vibrating Screen Sieve 1-5 Layers

Chemical Rotary Vibration Sieve Vibrating Screen

Introduction

Chemical Rotary Vibration Sieve Vibrating Screen is a high precision fine powder sieving machine. The fundamental principle of round separator is that the eccentric hammers installed on the top and bottom ends of motor changes the rotation motion of motor to horizontal, vertical and inclined three-dimensional motions, and then passes this motion to screen surface, achieving the purpose of classification, filtering and removal of impurities.

Structure

1. Chemical Rotary Vibration Sieve Vibrating Screen can be used with single or multilayer screen decks, If your purpose is removing impurity, choosing single deck is ok. If you choosing three decks, means the materials will be graded to be four kinds sizes.

2. Chemical Rotary Vibration Sieve Vibrating Screen can be made of stainless steel, carbon steel, pp materials according to different application.

3. Chemical Rotary Vibration Sieve Vibrating Screen is designed by our professional engineer, every process is controlled strictly by quality inspection personnel, such as raw material cutting, forming, welding, polishing, painting, and so on.

Chemical Rotary Vibration Sieve Vibrating Screen consist of top cover, screen frame, screening mesh, clamp, vibrator, vibration motor, support base, and so on.

Applications

1. Chemical industry: resin, paint, industrial drugs, cosmetics, paint, herbal powder and so on.

2. Food industry: sugar powder, starch, salt, rice powder, milk powder, soybean milk, egg powder, soy sauce, juice, etc.

3. Metals, metallurgy and mining: aluminum powder, lead powder, copper powder, ore, alloy powder, welding rod 4.powder, manganese dioxide, electrolytic copper powder, Electromagnetic material, grinding powder, refractory materials, kaolin, lime, alumina, heavy calcium carbonate, quartz sand, etc.

5. Other industries: waste oil, waste water, dyeing and finishing waste water, paper making, additives, activated carbon.

Feature

1. Wide application

Round separator can handle a wide range of materials, such as wet or dry, fine or coarse, heavy or light. Particles as fine as 400 mesh can be screened at high production rates.

2. Single or Multiple Separations.

As many as five screen decks can be incorporated in one round separator, providing simultaneous separation into six fractions.

3. Large capacity

According to some relevant tests, round separator has shown larger capacity per square meter than other types of separation machine.

4. Long working life

Each screen cloth is held in uniform tension by drawing it taut on tension rings. The drum-tight screening surface vibrates freely without whipping against rigid supports, greatly reducing screen wear and increasing screen life.

Technical data

The following table shows the detail data of different models of Chemical Rotary Vibration Sieve Vibrating Screen for your reference.

20T/H Rotary Vibrating Screen

Chemical Rotary Vibrating Screen

20T/H circular motion vibrating screen

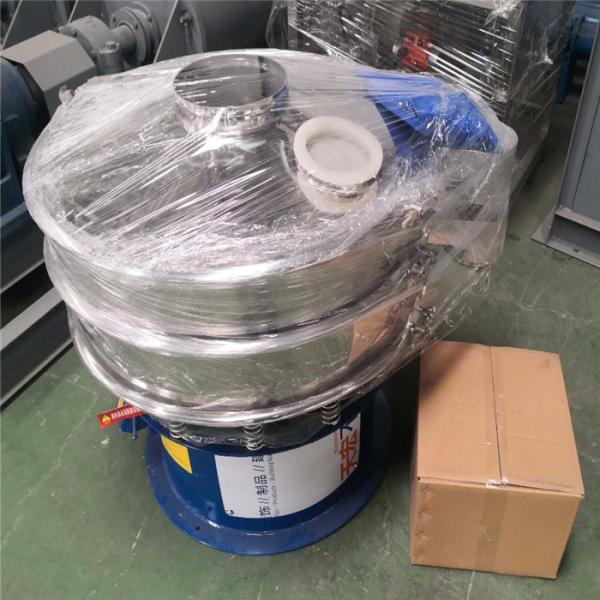

Chemical 20T/H Rotary Vibrating Screen Sieve 1-5 Layers Images
