Industrial Flexible Screw Conveyor , Multifunction Spirac Screw Conveyor
Industrial Flexible Screw Conveyor , Multifunction Spirac Screw Conveyor is new type of conveying equipment for transporting grain (wheat, rice, corn and soybean etc).Tube Screw Conveyor is used for conveying grain from one place to the other place. The conveying distance is 6-25 meters.
Advantages
1. Thickened wear-resisting PVC hose.
2. Light weight, small footprint, easy to move and install.
3. Unique spiral spring structure, low noise, high productivity.
4. Multi-function, can convey grain and other non-corrosive granular materials.
5. There are electric motor or diesel engine type for choice.
6. Voltage single phase 220v 50hz or 3-phase 380v 50hz, or customized.
7. There are single hose or double hose type for choice.
Introduction
Industrial Flexible Screw Conveyor , Multifunction Spirac Screw Conveyor is a new design machine developed by our company in combination with national conditions. This product is a small equipment specially designed for transportation, loading and storage of grain, fertilizer, chemical raw materials, stone, sand and other bulk powders. It has many advantages such as Small, light weight, easy to move, high efficiency, low breakage rate, wide use, safe, reliable ad so on. It is suitable for farms, warehouses, farms, feed mills, food plants, chemical plants, mining industry, etc.
| Model No. | Length (Meters) | Pipe diameter (mm) | Loading | Motor (kw) | Conveying height (m) |
| Capacity(t/h) |
| TCXLJ-100 | 6 | 100 | 4-6 | 1.5-4.5 | 3-4 |
| TCXLJ-100 | 8 | 100 | 4-6 | 1.5-4.5 | 3-4 |
| TCXLJ-100 | 10 | 100 | 4-6 | 1.5-4.5 | 3-4 |
| TCXLJ-100 | 12 | 100 | 4-6 | 1.5-4.5 | 3-4 |
| TCXLJ-120 | 6 | 120 | 6-10 | 1.5-4.5 | 3-4 |
| TCXLJ-120 | 8 | 120 | 6-10 | 1.5-4.5 | 3-4 |
| TCXLJ-120 | 10 | 120 | 6-10 | 1.5-4.5 | 3-4 |
| TCXLJ-120 | 12 | 120 | 6-10 | 1.5-4.5 | 3-4 |
| TCXLJ-160 | 6 | 160 | 10-20 | 1.5-4.5 | 3-4 |
| TCXLJ-160 | 8 | 160 | 10-20 | 1.5-4.5 | 3-4 |
| TCXLJ-160 | 10 | 160 | 10-20 | 1.5-4.5 | 3-4 |
| TCXLJ-160 | 12 | 160 | 10-20 | 1.5-4.5 | 3-4 |
Structure
1. Screw flight: the material of screw flight is manganese steel, it has good wear-resisting and flexible.
2. Wear-resisting pipe: The material of screw pipe is PVC resin, the PVC resin screw pipe is very good wear-resisting pipe, this will prolong the service lift of screw elevating conveyor.
3. Driving device: Motor, belt pulley, transmission belt and safe cover.
4. Inlet device and discharge device.
The motor shaft and the auger spring are linked by a screw. When the motor started to move, the motor drives the auger spring to rotate, and the grain at the collecting port rises along the spiral rising angle of the spring to reach the discharge port under the action of the rotating spring.
Features
1. The machine is compact in design, durable and has excellent performance.
2. Unique spiral spring structure, low noise and high productivity.
3. The whole machine is light in weight, small in floor space and convenient for mobile installation.
4. It is a multifunctional machine, and it can suck and load food grain, and convey granular fertilizer, feed, chemical products and other non-corrosive granular materials.
Industrial Flexible Screw Conveyor , Multifunction Spirac Screw Conveyor can transfer wheat, soybean, corn, rice, plastic and resin and so on. it can transfer horizationally or aslant.
Product Tags:
|
|

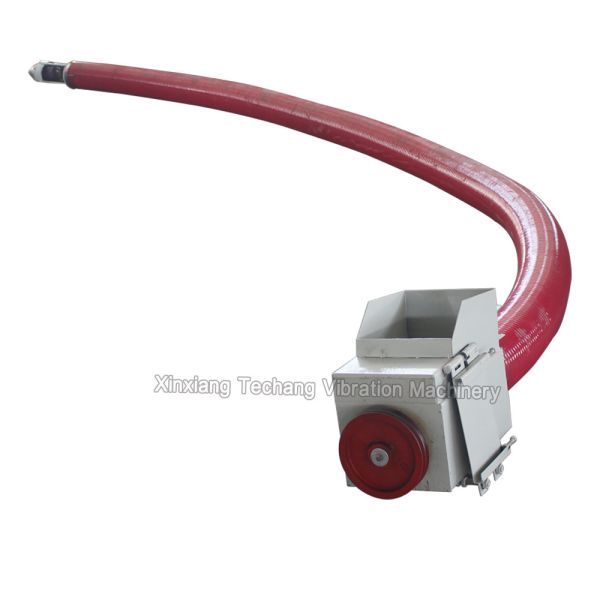

Industrial Flexible Screw Conveyor , Multifunction Spirac Screw Conveyor Images
|
